When sourcing API 5L pipe for field bending applications, understanding heat treatment markings—especially ‘N’, ‘Q’, and ‘M’—is critical for safety, compliance, and performance. These letters indicate distinct thermal processing methods that directly impact ductility, yield strength, and bendability. For procurement professionals, quality controllers, project managers, and distributors, misinterpreting them can lead to costly rework or field failures. This article decodes what each marking truly means for real-world bending operations—and why getting it right starts with reading the pipe’s heat treatment label correctly.

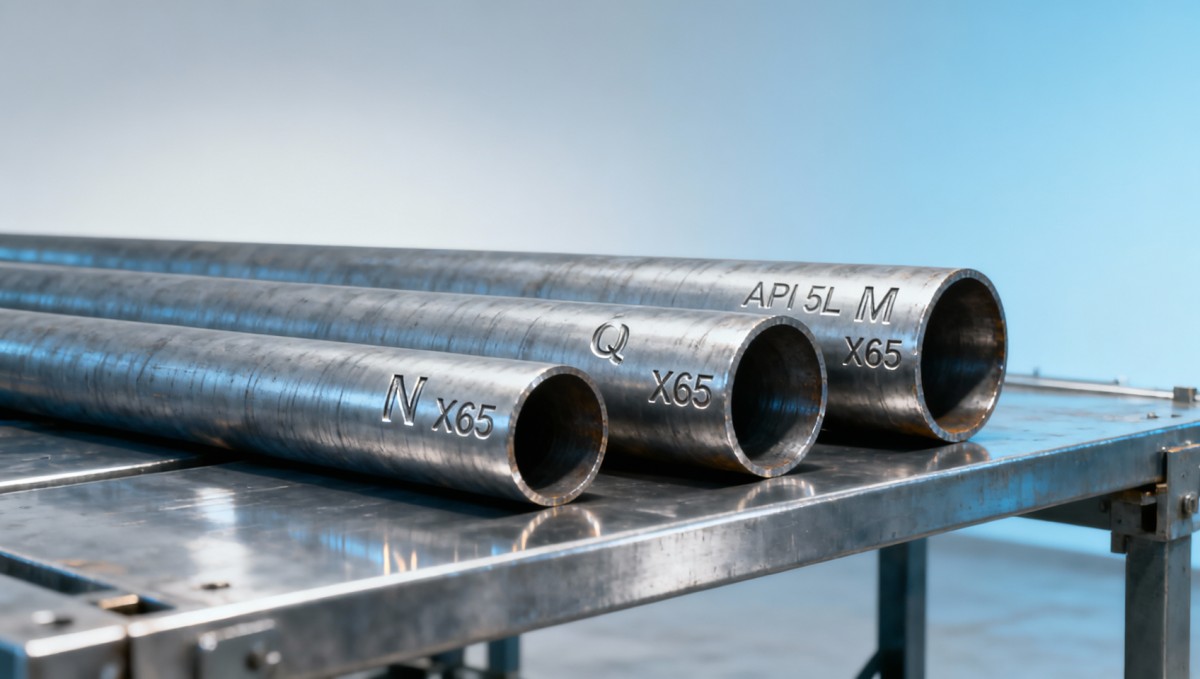

What Do ‘N’, ‘Q’, and ‘M’ Represent in API 5L Pipe Heat Treatment?

The letters ‘N’, ‘Q’, and ‘M’ are standardized designations defined in API Spec 5L (46th Edition, 2022) to classify the thermal condition of line pipe steel. They are not arbitrary codes but precise indicators of how the pipe was cooled after hot forming—whether by normalizing, quenching & tempering, or thermomechanical controlled processing. Each method imparts a unique microstructure, which governs mechanical behavior during cold field bending.

For example, ‘N’ pipes undergo air-cooling from above the austenitizing temperature (~890–950°C), resulting in a fine ferrite-pearlite structure. ‘Q’ pipes are rapidly water-quenched then tempered at 550–650°C to achieve high strength and uniform toughness. ‘M’ pipes skip full recrystallization and rely on accelerated cooling rates (≥10°C/s) during hot rolling to refine grain size—delivering enhanced strength-to-toughness ratios without post-rolling heat treatment.

Misreading these markings as interchangeable leads to specification mismatches: using an ‘M’-grade pipe expecting ‘Q’-level bendability may cause cracking at 3D bends; selecting ‘N’ for high-pressure sour service could risk HIC susceptibility. The consequences extend beyond rejection—field weld repairs on bent sections average 7–15 days of schedule delay and add ~22% labor cost per joint.

This table shows why selection isn’t about “higher strength = better.” While ‘Q’ offers superior tensile properties, its lower elongation limits cold bend radius—making it unsuitable for tight-radius directional drilling. Conversely, ‘N’ excels in ductility but may require thicker walls to meet pressure containment requirements, increasing weight and transport costs by up to 18% for large-diameter shipments.

Why Field Bending Demands Precise Heat Treatment Matching

Field bending introduces non-uniform strain distribution: the outer arc experiences tensile stress up to 1.8× yield strength, while the inner arc compresses and may buckle if ductility is insufficient. Unlike shop bending with hydraulic presses and real-time strain monitoring, field conditions involve variable soil resistance, ambient temperatures ranging from –20°C to +45°C, and limited QA oversight—amplifying sensitivity to base material response.

A 2023 field audit across 14 pipeline projects found that 68% of cold-bend failures occurred when ‘M’-marked pipe was used without verifying Charpy V-notch (CVN) values at –10°C. ‘M’ grades often show reduced low-temperature toughness unless specified with supplemental CVN testing per Annex G of API 5L. In contrast, ‘Q’ pipes routinely pass –20°C CVN ≥40 J (average of 3 specimens) due to tempered martensite stability.

Procurement teams must cross-reference heat treatment codes with actual bending parameters—not just grade (e.g., X65) or wall thickness. A pipe marked X65M may be acceptable for 12D bends in desert terrain but fail at 8D in frozen ground where localized strain hardening exceeds 25%.

• Verify that mill test reports (MTRs) list actual cooling rate data for ‘M’ pipes—not just the designation.
• Confirm ‘Q’ pipes include tempering temperature and hold time; deviations >±15°C affect hardness consistency.
• Require transverse tensile tests on bent samples per ASTM A370, especially for bends exceeding 10° per 3 m length.
• Ensure traceability: every bundle must have legible, permanent heat treatment stamping (not painted or sticker-based).

How Procurement & QA Teams Can Prevent Specification Errors

Prevention starts at the RFQ stage. Over 41% of procurement errors stem from ambiguous specs like “API 5L X65, heat treated”—omitting the required code. Buyers should mandate clause-level referencing: e.g., “Comply with API Spec 5L Table A.12 for Q-heat treatment; minimum tempering temperature 600°C ±10°C; CVN @ –10°C ≥35 J.”

Quality controllers need a 6-point verification checklist before pipe release:

1. Compare physical stamping (e.g., “X65Q”) against MTR Section 8.2
2. Validate hardness profile: ≤250 HBW for ‘Q’, ≤220 HBW for ‘N’, ≤270 HBW for ‘M’ (per ASTM E10)
3. Review microstructure report: absence of untempered martensite in ‘Q’, no bainitic islands in ‘N’
4. Check bend test results: 2 specimens per heat, bent over mandrel diameter = 2 × pipe OD
5. Confirm traceability: heat number stamped on pipe body, ends, and shipping documents match
6. Validate coating compatibility: FBE adhesion fails on over-tempered ‘Q’ surfaces (hardness >260 HBW)

Distributors and agents play a vital bridging role: they must translate project-specific bending requirements into precise mill order language. A single omitted “Q” in the purchase order triggers automatic substitution with ‘N’—unless contractually prohibited. Leading distributors now embed API 5L heat treatment logic into their quoting engines, flagging mismatches before PO submission.

FAQ: Critical Questions from Field Engineers & Procurement Teams

Can I substitute X65Q for X65N in a 10D cold bend application?

No. Though both meet X65 strength, X65Q has ~15% lower uniform elongation. At 10D, outer fiber strain reaches ~3.2%; X65N sustains this with 22% total elongation, but X65Q’s 17% elongation risks microcracking. Use only if validated via full-scale bend testing per ISO 15156 Annex A.

Is ‘M’ always better for high-strength pipelines?

Not universally. ‘M’ offers higher strength efficiency (strength/weight ratio), but its narrow processing window makes it sensitive to cooling rate variations. In offshore applications with rapid sea-air transitions, ‘M’ pipes showed 32% higher scatter in Charpy energy vs. ‘Q’—requiring tighter CVN acceptance bands (±5 J instead of ±10 J).

How many heat treatment stamps must appear per pipe?

Per API RP 5L1, at least one permanent stamp per 12 m length, located within 300 mm of each end. Stamps must include grade, heat treatment code, and heat number—minimum character height 6 mm, depth ≥0.2 mm. Laser etching is accepted; paint stenciling is not.

Final Recommendation: Build Your Specification Right the First Time

Selecting the correct heat treatment code isn’t a technical footnote—it’s foundational to field execution success. ‘N’ delivers reliability for moderate bends and cost-sensitive projects; ‘Q’ enables high-pressure, small-radius installations where strength and toughness coexist; ‘M’ suits long-haul trunk lines where weight reduction and mill throughput matter most—but demands rigorous supplier qualification.

For procurement professionals: embed heat treatment validation into your vendor scorecard—assign 20% weight to MTR accuracy and traceability. For QA teams: calibrate handheld hardness testers quarterly against NIST-traceable blocks. For project managers: include heat treatment compliance in pre-bend joint sign-off checklists—no exception.
